EM 4193 Thin Bed Screed is a polymer modified self-levelling thin bed floor screed based on a calcium sulphate binder.

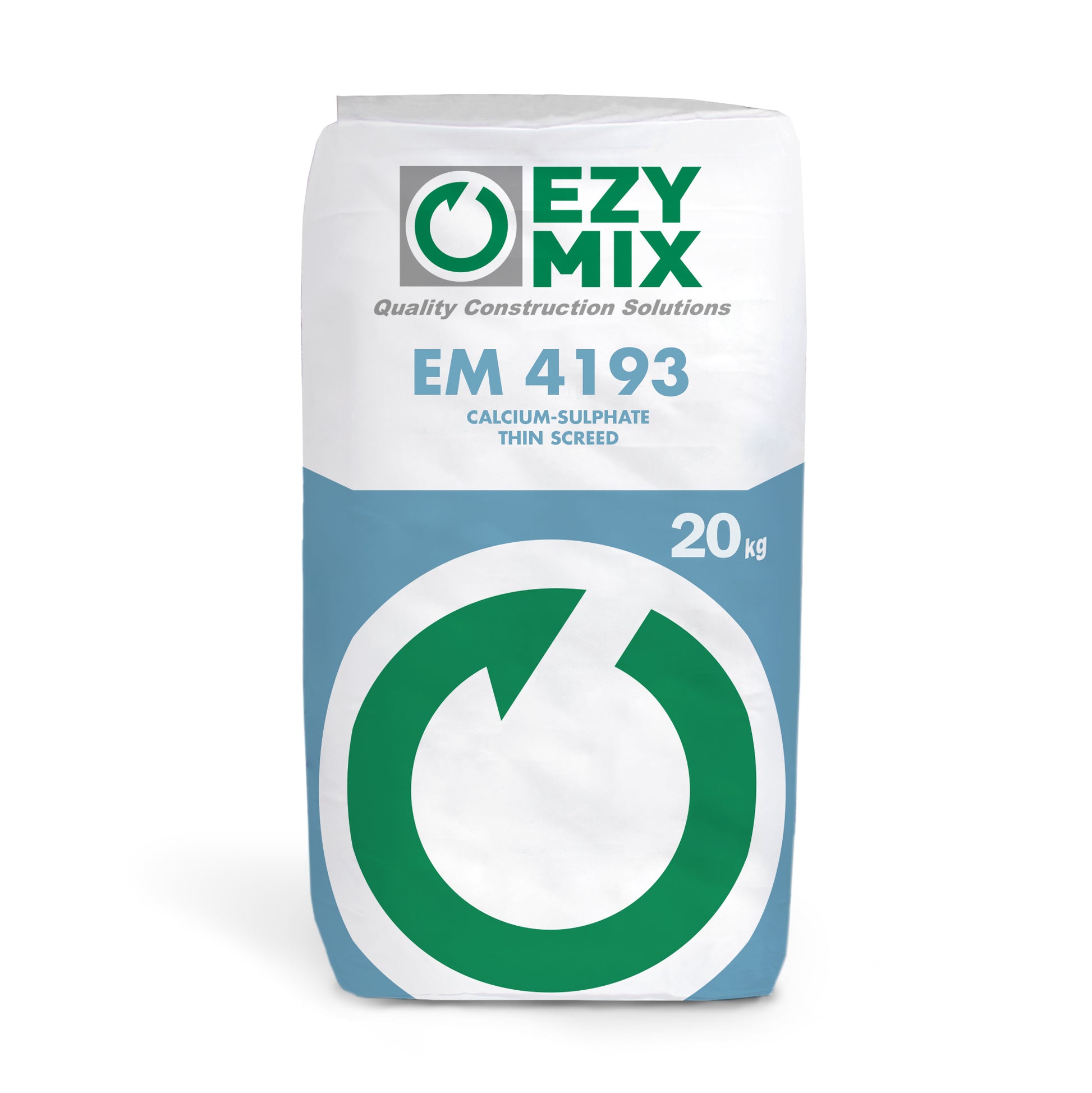

EM 4193 Thin Bed Screed is supplied as a pre-blended dry mortar supplied in 25kg bags. Meets all requirements of EN 13813 and DIN 18560 for CA-C30-F6.
Field of Application
EM 4193 Thin Bed Screed is designed for use as a renovating thin bed levelling screed for the encapsulation of under floor heating systems installed during a renovation or where an existing floor level must be built up during renovation projects.
Suitable for residential and commercial applications, EM 4193 Thin Bed Screed must be covered by a suitable floor covering.
EM 4193 Thin Bed Screed can be installed as a bonded screed to the existing substrate or as a floating screed over insulation and/or separating layers from the existing floor.
Technical Specifications
Coverage rate | 18kg/m2 per cm of thickness |
Light Foot Traffic | after approx. 6 hours |
Light Traffic | after approx. 24 hours |
Heavy Traffic | after approx. 7 days |
Unbonded Thickness | 25mm over Insulation board |
Bonded Thickness | 10mm over Concrete floor |
Application temperature | Substrate + 5°C to + 25°C |
Ambient + 5°C to + 30°C | |
Working time | approx. 30min at 20˚C |
28 Day Compressive Strength | 30N/mm2 |
28 Day Flexural Strength | 6N/mm2 |
Water Content | Approx. 19% |
